Product Description

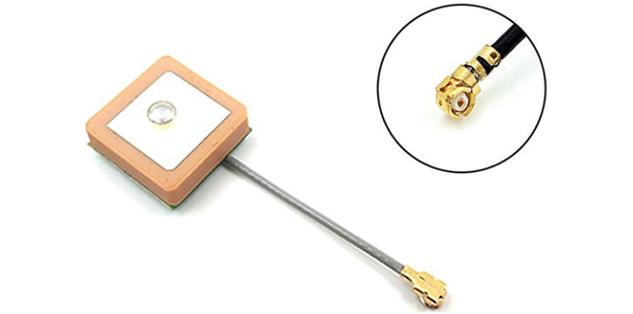

12*12*4MM active GPS glonass Antenna, small patch mini ceramic antenna GPS glonass, high gain 28dBi active internal antenna GPS glonass with IPEX connector, the internal Glonass GPS antenna can do GPS, Glonass, Galileo and Beidou frequency according to your request, use for charging pile, vehicle, and so on.



Features of 12*12*4 GPS Glonass Active Internal Antenna



1574.42/1602MHz GNSS



Ceramic+PCB



Omni direction coverage



28dBi Active GPS Glonass



Custom antenna cable length



Specification of 12*12*4 GPS Glonass Active Internal Antenna



Item	Specifications
Antenna	Frequency Range	1575.42/1602MHz
	Gain	28dBi
	V.S.W.R	≤1.9
	Impedance	50Ω
	Antenna size	25*25/18*18/15*15/12*12mm
	Polarization	Linear
Mechanical	Inner Material	Ceramic
	Connector type	IPEX/SMA or customizable
	Mounting Method	IPEX
Environmental	Operating Temperature	-40℃~+80℃
	Storage Temperature	-40℃~+85℃
	Environmentally Friendly	ROHS Compliant



Suzhou Cowin Antenna Electronics Co., Ltd is one of professional 5g antenna companies. We provide Cellular Antenna, WIFI Bluetooth Antenna, gnss passive antenna and so on. Want to know more? Please contact us.
